AutoDyn 30 Chassis Dyno
Compact, High-performance 30" Chassis Dynamometer

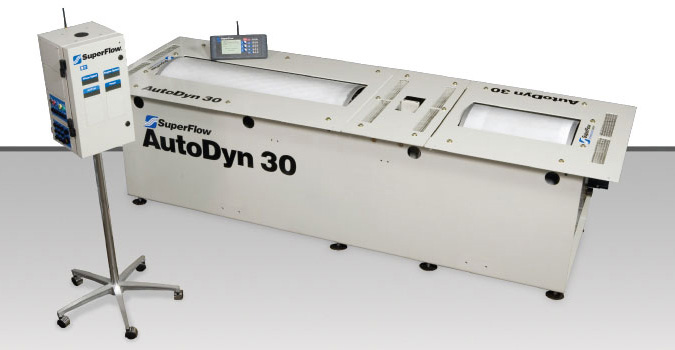

SuperFlow's AutoDyn 30 chassis dyno was designed for a variety of automobile, light truck, ATV and motorcycle applications. Test vehicles with up to 2,500 horsepower at speeds up to 225 mph. Add a second power absorber for higher power applications.

The AutoDyn 30's standard center-mounted power absorber places the rolls only 26" apart. This design allows you to test narrow-axle drag race vehicles and provides an extremely compact footprint to help conserve your valuable shop floor space. SuperFlow provides all this power and efficiency for a very affordable price.


Features:

With the AutoDyn 30 you can...

  • Perform acceleration, step and steady-state tests at all throttle settings.
  • View real-time torque output, at steady and changing speeds, to instantly evaluate changes you've made to the engine's fuel or timing maps with WinDyn software.
  • Diagnose engine and drivetrain problems.
  • Identify drivetrain frictional losses.
  • Troubleshoot driveability issues.
  • Control the entire test from a handheld controller, inside the test vehicle.
  • Run track lap simulations



Specifications:



Roll Diameter 30" (76.2 cm)
Peak Power 2,500 HP (1,864 kW)
Peak Absorbed Power 1,100 (SEC) / 2,200 HP (DEC) - (820 kW / 1,641 kW)
Max Speed 225 mph (362 km/h)
Track Width 26" inside - 100" outside (66 cm - 254 cm)
Base System Inertia 1,200 lbs. (544 kg)
Axle Weight 8,000 lbs. (3,629 kg)
Air Requirements 50 - 100 psi (345 - 690 kPa)
Power Requirements 110 VAC / 15A or 250 VAC / 8A and 208-250 VAC / 20A
Shipping weight(approximate) 5,000 lbs. (2,268 kg)





Options:

Above Ground Ramp Kit
SuperFlow offers lightweight aluminum ramp kits for the AutoDyn 11 and AutoDyn 30 chassis dynos. Kits include heavy-duty aluminum ramps and extended platforms that support the vehicle during testing. Because they are light-weight these ramps work great for portable dyno applications and they are easy to move in and out of place.

Ramps are perfect if you are unable to install your SuperFlow chassis dyno in a pit or when shop space is limited because they stack neatly out of the way when not in use. Contact a SuperFlow Sales Engineer today to get the correct ramp kit for your chassis dynamometer.

4-post Hoists
SuperFlow offers several different 4-post hoists to fit any needs and budget. Models are available with a walking platform, safety rails and access ladders to make working on vehicles easy and safe. SuperFlow also offers an economy hoist that does not include the extra features listed above, but still works great for loading vehicles on and off your chassis dyno quickly and easily.

All lifts come with tie-down anchor points at the front and rear of the platform to secure vehicles for testing. 4-post hoists let you make performance upgrades anywhere on the vehicle without having to move it from the dyno. Additional benefits include oil changes, performance upgrades, brakes, tire rotations, etc.

Contact a SuperFlow Sales Engineer today to learn more about 4-post hoists as well as other options for above ground installation of your SuperFlow chassis dyno.

AutoDyn Tie Down Strap Kit
Standard tie-down strap kits include (4), 2in. by 15ft. heavy duty straps with ratchets and (2), 2in. by 4ft. web-sling straps with eyelet to eyelet ends. Cored in-floor anchors are available separately.


In-Floor Anchors
In-Floor AnchorsSuperFlow offers in-floor, compression style anchors to outfit your shop with convenient, yet out of the way tie down points. The 3.5in. anchors feature a chain receiver that allows you to quickly attach the tie down chain or remove it when not in use. The anchors have a 10,000 lb. (4,536kg) horizontal rating and a 500 lb. (227 kg) vertical rating. A cover plate is included to fill the receiver hole when the anchors are not being used.

*Chain is not included because each installation varies

Optical Wheel Tachometer
SuperFlow’s optical wheel tachometer reads wheel speed using an infrared beam and reflective tape. It features a magnetic base for secure mounting to any AutoDyn frame. The optical tach is non-contact and works in many applications where inductive pickups may not. Contact a SuperFlow Sales Engineer today for more information on all of the options available for SuperFlow chassis dynamometers.

Inductive Spark Pick-Up Assembly
SuperFlow’s Inductive Spark Pick-Up Assembly features a rugged housing that protects the device from tough shop environments and allows it to provide years of service. With user-adjustable sensitivity you’re able to dial in the device exactly how you want it.

The spark pick-up includes one inductive clip. For wasted spark ignition systems a second clip can be added. Contact SuperFlow today for more information on this and other options to get the most out of your SuperFlow chassis dyno.


Pressure Sensor Expansion Kits
The SuperFlow sensor box is easily upgradeable at any time. Several pressure sensor expansion kits are available that provide up to 10 additional pressures per expansion panel for fluid or gas pressures. Monitor oil, manifold, fuel system, air inlet, exhaust and auxiliary pressures. View all of the data live in our WinDyn software and also save it for easy post test graphing and analysis.
  • Ranges
    • Oil Pressure 150 psi
    • Manifold Pressure: 200 in Hg
    • Fuel Pressure: 150 psi
    • Air Inlet Pressure ± 140 in. Hg
    • Exhaust Pressure: ± 140 in. H2O
    • Auxiliary Pressures also available
      • Metal transducers (for hydrocarbon pressures)
        • 0-150 psi
        • 0-300 psi
      • PCB-mount transducers (for non-hydrocarbon pressures)
        • 0-5 psi
        • 0-150 psi
        • 0-150 psi
      • Differential pressure transducers
        • ± 5 psi
        • ± 30 psi
        • ± 100 psi
        • Different ranges can be set by the factory
    • Remote systems available for high pressures
      • Ranges
        • 0-150 psi
        • 0-300 psi
        • 0-2,000 psi
        • *Requires Analog Input Expansion Panel


Temperature Sensor Expansion Kits
Expand your sensor box with a 16-channel thermocouple panel for Type K, Type J or Type T thermocouples. Monitor oil and water temperatures live in our WinDyn software then save the data for easy post test graphing and analysis. Monitoring temperatures is critical to accurate and repeatable testing so SuperFlow offers several kits to suit any needs and budget. Panels accept pole or spade thermocouple plug ends. Contact SuperFlow today for more information on Temperature Expansion Panels for your SuperFlow chassis dynamometer.

Oil Dipstick Temperature Probe
Oil Dip Stick sensorSuperFlow's oil dipstick temperature probe plugs directly into the temperature expansion panel so you can get accurate oil temperature readings with every test. It includes a 10in. extension cable and features a temperature range of -67° F to 1,200° F (-55° C to 704° C). It is also available with an analog output to plug directly into the interconnect panel or analog panel. This version has a temperature range of -67° F to 257° F (-55° C to 125° C).

Analog Input Expansion Panel
SuperFlow offers 8-channel analog voltage input panels so customers can easily integrate data from exhaust gas analyzers, lambda sensors, O2 sensors, and other emissions monitoring equipment with our WinDyn software. You can then monitor the data live during each test, and also save it for post test graphing and analysis to see the data graphed over the entire run. The panels can be configured with any combination of the following ranges:
  • 0-1 V
  • 0-5 V
  • 0-10 V
  • 0-20 V
  • 0-30 V

Battery Voltage Input Cable
SuperFlow’s Battery Voltage Input Cable allows you to monitor battery voltage live in our WinDyn software with the 0-20 VDC input. *Requires analog input expansion panel.


Air Flow Measurement Turbines
SuperFlow offers 4in. (10.2cm), 6in. (15.2cm), and 9in. (22.9 cm), air flow measurement turbines. They are available on their own or in a kit that includes a ceiling adapter, flexible hose and carburetor adapter. The turbines have CFM ranges as follows:
  • 4in: 4 – 150 CFM (2 – 70 lps)
  • 6in: 10 – 800 CFM (5 – 380 lps)
  • 9in: 20 – 1,200 CFM (9 – 560 lps)

Adapters are available to adapt the 9” (22.9cm) air turbine to Holley and Dominator carburetors.





Fuel Flow Measurement Turbines
SuperFlow fuel turbines come in three different ranges:
  • Low flow: 0.3 – 30 GPH (1.13 – 113 l/h)
  • Standard flow: 6 – 60 GPH (22.7 – 227 l/h)
  • High flow: 28 – 140 GPH (106 – 530 l/h)





OBD-II Interface Module
ODB-II Interface ModuleWith SuperFlow’s OBD-II Interface Module you can easily monitor and record any OBD-II data that the ECM makes available directly in our WinDyn dynamometer software. The device plugs directly into the OBD-II port and automatically shows you the available PIDs for that vehicle. You can then quickly configure the system to display the channels that you want to monitor live on custom, user-defined WinDyn screens. With SuperFlow’s high speed data acquisition you can close-loop control to OBD-II channels and save any of them you want for post test analysis and graphing.

With the OBD-II Interface Module you’re also able to read Diagnostic Trouble Codes (DTC’s) and clear them once they are resolved. Contact a SuperFlow Sales Engineer today for more information on the OBD-II Interface Module for your SuperFlow chassis dyno.


Air/Fuel Sensor Packages
Air/Fuel SensorSuperFlow offers several lambda packages for measuring air/fuel ratios. These packages integrate with our WinDyn dynamometer software for live monitoring and easy post test graphing and analysis. Contact a SuperFlow Sales Engineer today to learn more about the available options so you can get the most out of your SuperFlow chassis dyno.


Tailpipe Air/Fuel Probes
Tailpipe Air Fuel ProbesWith SuperFlow exhaust probes you can measure air/fuel data directly from the tailpipe. Tailpipe probes integrate with our WinDyn dynamometer software for live monitoring and easy post test graphing and analysis. Contact a SuperFlow Sales Engineer today to learn more about the available exhaust probes for your chassis dynamometer.


Diesel Exhaust Opacity Meter
6500 Smoke AnalyzerSuperFlow’s Diesel Exhaust Opacity Meter measures the opacity of visible smoke coming from the exhaust. It’s rugged and portable design provides years of easy use. Contact SuperFlow today for more information on this and all the available options for your SuperFlow chassis dyno.


Volumetric Blow-by Sensors
Blow-by SensorSuperFlow’s blow-by sensors measures the volumetric flow of crankcase blow-by. Two sizes are available: 0.4 to 16 ACFM and .25 to 10 ACFM. Users have the option to choose either an analog or frequency output. Contact a SuperFlow Sales Engineer today for more information.


Driver’s Trace Software
Driver's Trace SoftwareSuperFlow’s Driver’s Trace Software integrates seamlessly with your SuperFlow chassis dynamometer and allows drivers to follow a real-time moving driver’s trace on it’s easy-to-read display. It can run any .csv based drive cycle and it is easy to configure. Special operations like shift points or display messages for the driver can be included in the trace so each test is accurate and repeatable. Contact a SuperFlow Sales Engineer today for more information on our Drivers Trace Software for you chassis dynamometer.

*Requires WinDyn 2.7 or higher.



More Info:
