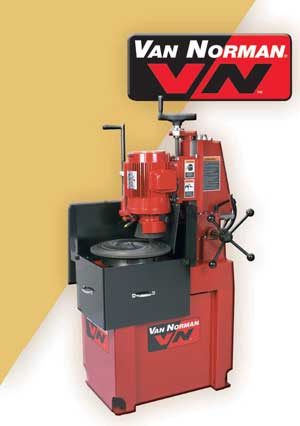

Van Norman FG4000 Flywheel Grinder




The FG4000 Flywheel Grinder - ideal for transmission shops, garages, auto repair shops and jobber parts stores. The FG4000's 16" (406.4mm) diameter capacity allows you to grind flywheels for all passenger cars and light trucks.

  • Powerful 5HP spindle motor

  • Extreme duty table design guarantees zero table deflection

  • Compact size saves valuable floor space

  • Fast, simple, accurate setup in less than one minute

  • Choice of many Top Fuel/Funny Car and Pro Stock Teams










For further information




  Specifications:
  Grinding Capacity 16" (406mm)

Standard Accessories:


  Height Capacity 6.75" (171mm)

Wheel Spacer 1.50" (38.10mm)

794-8124-71

  Table Diameter 12" (305mm)   Wheel Spacer 2.00" (50.80mm)

794-8011-90

  Grinder Head Motor (3450rpm) 5hp (3.5kw)   Grinding Wheel 3.00" (76.20) Flared Cup

794-8687-01

  Coolant Pump Motor (60gph) 1/8hp   3.00" Wheel Mounting Flange 794-8686-97
  Rotating Table Motor 1/4hp (.177kw)   Grinding Wheel 4.00" (101.6mm) Flared Cup 794-8011-28
  Coolant Capacity 5 Gal   Grinding Wheel 6.00" (152.4mm) Flared Cup 794-8011-30
  Overall Height 57" (1448mm)   4.00" & 6.00" Wheel Mounting Flange 794-8011-88
  Height to Table 29" (737mm)   Wheel Mounting Bolt, 4.50" (114.3mm) 794-8692-38
  Overall Depth 30" (762mm)   Wheel Mounting Bolt, 4.25" (107.95mm) 794-8692-39
  Overall Width 19" (483mm)   Wheel Mounting Bolt, 2.75" (69.85mm) 794-8016-45
  Shipping Weight 1000 lbs (454kg)   Wheel Mounting Bolt, 2.50" (63.50mm) 794-8020-81
        Wheel Mounting Bolt, 1.25" (31.75mm) 794-8015-99
  Ordering Information:     Wheel Mounting Bolt, 1.00" (25.40mm) 794-8016-10
  FG4000 Flywheel Grinder (3Ph) 794-8684-00   E-Z Lock Insert (2 Included) 794-8017-44
  FG4000 Flywheel Grinder (1Ph) 794-8684-01   E-Z Lock Insert Extractor 794-8637-45
        O-Ring 794-8013-12
  Optional Accessories:     Oil Level Gauge 794-8013-73
  Round Flywheel Mount - Top Fuel 794-8687-10   Star Dresser 794-8011-70
  VW /Universal Flywheel Kit 794-8685-49   Lead screw Lubricant 794-8011-52
  Dowel Pin Puller Kit 794-8684-78   Coolant Pump 794-8621-76
  Radius Cutter Assembly 794-8685-20   Coolant Additive, 1Qt (.946 liter) 794-8011-40
  Rinse Nozzle Kit 794-8690-84   Table Lubricant, 1 Qt (.946 liter) 794-8011-55
  Step Comparator 794-8692-67   Leveling Pads (4 included) 794-8030-58
  Dial Indicator/Indicator Bar Set 794-8627-83   Leveling Bolts (4 included) 794-8033-21
  Head Tilt Setting Kit 794-8685-32   Leveling Lock Nuts (4 included) 794-8030-25
  Diamond Dresser Arm with Diamond 794-8689-53   T-Handle Hex Wrench 794-8017-32
  Shop Vac Adapter Assembly 794-8685-54   Wrench Set 794-8017-37
  Load meter for 3 phase 794-8692-75   Centering Cone Bolt 1.875" (47.60mm) 794-8010-64
  Load meter for 1 phase 794-8692-77   Centering Cone Bolt 2.375" (60.30mm) 794-8010-65
  ATP5000 Automatic Transmission Kit 794-8633-33   Centering Cone Bolt 3.375" (87.80mm) 794-8010-66
  Hold-Down Tooling for Floater Plates 794-8684-93   Small Bore/VW Centering Cone Set 794-8017-90
  Coolant System 794-8687-20   Centering Cone, .50x1.375" (12.70x34.90mm) 794-8010-69
  RACING Tooling Package 794-8687-04   Centering Cone, .50x1.375" Steep Angle 794-8010-70
        Flange Adapter 2.00" (50.8mm) 794-8010-95
  Grinding Wheels & Supplies:     SH Cap Screw .437-14x1.50" 794-8016-28
  Grinding Wheel - 6" Flared Cup 794-8011-12   SH Cap Screw .437-14x2.25" 794-8687-14
  Grinding Wheel - 6" Flared Cup 794-8011-16   FSH Cap Screw .437-14x2.00" 794-8015-96
  Grinding Wheel - 4" Flared Cup 794-8011-28   FSH Cap Screw .437-14x2.50" 794-8686-99
  Grinding Wheel - 6" Flared Cup 794-8011-30   Centering Cone, 1.00x1.75" (25.40x44.50mm) 794-8010-72
  Grinding Wheel  - 6" Straight Sided 794-8011-32   Centering Cone, 1.312x2.00" (33.30x50.80mm) 794-8010-74
  Grinding Wheel - 6" Flared Cup 794-8011-34   Centering Cone, 1.75x2.50" (44.50x63.50mm) 794-8010-76
  Grinding Wheel - 6" Straight Sided 794-8011-36   Centering Cone, 2.00x2.625" (50.80x66.70mm) 794-8017-93
  Grinding Wheel - 4" Flared Cup 794-8633-32   Centering Cone 2.25x3.00" (57.20x76.20mm) 794-8010-78
  Grinding Wheel - 3" Flared Cup * 794-8687-01   Flange Adapter 3.00" (76.20mm) 794-8010-90
  * Requires 3" Mounting Flange 794-8686-97   Flange Adapter 4.00" (101.6mm) 794-8010-92
  E-Z Lok Insert 794-8017-44   Flange Adapter 5.00" (127.0mm) 794-8010-94
  Star Dresser 794-8011-70
  Lead screw Lubricant 794-8011-52
  Coolant Additive, 1 Qt. 794-8011-40
  Coolant Additive, 1 Gal. 794-8011-41
  Coolant Additive, 5 Gal. 794-8011-42
  Table Lubricant, 1 Qt. 794-8011-55
