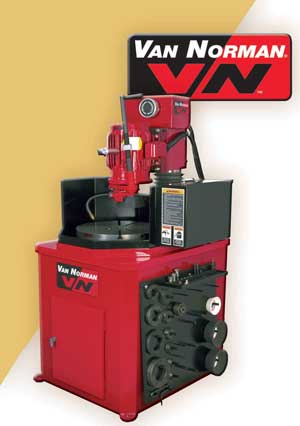

Van Norman FG10000 Flywheel Grinder




The FG10000 Flywheel Grinder has all of the features of the FG5000 but is engineered for even heavier duty use. Some of the added benefits are a 10 HP grinding motor, 5.5" (139.7mm) diameter quill and 10.5" (266.7mm) vertical head clearance/travel. These features make the FG10000 the fastest flywheel grinder available.

  • Optional AutoGrind™: Easy to set, easy to use, increases productivity and is reliable

  • There is absolutely no table deflection regardless of grinding pressure

  • Massive 5.5" (139.7mm) diameter column, largest in the industry

  • Easy, user-friendly operation










For further information






Specifications:











Grinding Capacity 24" (600mm)



Standard Accessories:





Height Capacity 10.5" (266.7mm)



Leveling Bolts (4 included)

794-8033-21



Table Diameter 18" (450mm)



Leveling Lock Nuts (4 included)

794-8030-25



Grinder Head Motor (3450rpm) 10hp (7kw)



Leveling Pads (4 included) 794-8030-58



Coolant Pump Motor (60gph) 1/8hp



T-Handle Hex Wrench

794-8017-32



Rotating Table Motor 1/4hp (.177kw)



Wrench Set

794-8017-37



Coolant Capacity 9.5 gal (36L)



Centering Cone, 1.312x2.00 (33.30x50.80mm)

794-8010-74



Coolant Capacity (optional) 32 gal 121L)



Centering Cone, 1.75x2.50 (44.50x63.50mm)

794-8010-76



Overall Height 69" (1752.6mm)



Centering Cone, 2.00x2.625 (50.80x66.70mm) 794-8017-93



Height to Table 34.6" (878mm)



Centering Cone, 2.25x3.00 (57.20x76.20mm) 794-8010-78



Overall Depth 36" (914.4mm)



Centering Cone, 2.75x3.50 (69.90x88.90mm) 794-8010-80



Overall Width 34.5" (876mm)



Centering Cone, 1.00x1.75 (25.40x44.50mm) 794-8010-72



Shipping Weight 1700 lbs (772.5kg)



Centering Cone Bolt 1.875" (47.60mm) 794-8010-64







Centering Cone Bolt 2.375" (87.80mm) 794-8010-65







Centering Cone Bolt 3.375" (87.80mm) 794-8010-66







Flange Adapter 3.00 (76.20mm) 794-8010-90







Flange Adapter 4.00 (101.6mm) 794-8010-92



Ordering Information:



Flange Adapter 5.00 (127.0mm) 794-8010-94



FG10000 with Powerhead

(208/230V-60Hz-3 Ph)

794-8688-22



Flange Adapter 5.875 (149.2mm) 794-8010-97



FG10000 w/Powerhead & AutoGrind (208/230V-60Hz-3 Ph)

794-8688-06



Wheel Spacer 1.50" (38.10mm) 794-8124-71



Other Voltages Available





Grinding Wheel 6.00" (152.4mm) Flared Cup 794-8011-30



Optional Accessories:





Grinding Wheel 6.00 (152.4mm Flared Cup Ceramic Oxide 794-8686-22



Round Flywheel Mount - Top Fuel

794-8687-10



Grinding Wheel 4.00 (101.6mm) Flared Cup Ceramic Oxide 794-8686-23



VW /Universal Flywheel Kit

794-8685-49



4.00" & 6.00" Wheel Mounting Flange 794-8011-88



Dowel Pin Puller Kit

794-8684-78



Wheel Mounting Bolt, 2.75" (69.35mm) 794-8016-45



Radius Cutter Assembly

794-8685-20



Wheel Mounting Bolt, 2.50" (63.5mm) 794-8020-81



Rinse Nozzle Kit

794-8690-84



Wheel Mounting Bolt, 1.25" (31.75MM) 794-8015-99



Step Comparator

794-8692-67



Wheel Mounting Bolt, 1.00" (25.4mm) 794-8016-10



Dial Indicator/Indicator Bar Set

794-8627-83



E-Z Lock Insert (2 included) 794-8017-44



Head Tilt Setting Kit 794-8685-32



E-Z Lock Insert Extractor 794-8637-45



Diamond Dresser Arm with Diamond 794-8689-53



O-Ring 794-8013-12



Shop Vac Adapter Assembly 794-8685-54



Oil Level Gauge 794-8013-73



Loadmeter for 3 phase 794-8692-75



Star Dresser 794-8011-70



Loadmeter for 1 phase 794-8692-77



Leadscrew Lubricant 794-8011-52



ATP5000 Automatic Transmission Kit 794-8633-33



Coolant Pump 794-8621-76



Small Bore Centering Cone Set 794-8107-90



Coolant Additive, 1 Qt (.946L) 794-8011-40



Heavy Duty UniversalCentering Cone & Spacer Kit 794-8107-88



Table Lubricant, 1 Qt (.946L) 794-8011-55



Heavy Duty Centering Adapter Set 794-8680-18







0-4" Depth Micrometer 794-8684-77



Grinding Wheels & Supplies:
  Clutch Tooling 794-8010-40   Grinding Wheel - 6" Flared Cup 794-8011-12
  32 Gallon External Coolant Tank with Baffles (230V-60Hz-1Ph) 794-8688-34   Grinding Wheel - 6" Flared Cup 794-8011-16
  ATP Automatic Transmission Rebuilding Kit 794-8633-33   Grinding Wheel - 4" Flared Cup 794-8011-28
  Hold-Down Tooling for Floater Plates 794-8684-93   Grinding Wheel  - 6" Straight Sided 794-8011-32
  Coolant System 794-8687-20   Grinding Wheel - 6" Flared Cup 794-8011-34
  RACING Tooling Package 794-8687-04   Grinding Wheel - 6" Straight Sided 794-8011-36
        Grinding Wheel - 4" Flared Cup 794-8633-32
        Grinding Wheel - 3" Flared Cup * 794-8687-01
        * Requires 3" Mounting Flange 794-8686-97
        E-Z Lok Insert 794-8017-44
        Star Dresser 794-8011-70
        Leadscrew Lubricant 794-8011-52
        Coolant Additive, 1 Qt. 794-8011-40
        Coolant Additive, 1 Gal. 794-8011-41
        Coolant Additive, 5 Gal. 794-8011-42
        Table Lubricant, 1 Qt. 794-8011-55
