 Van

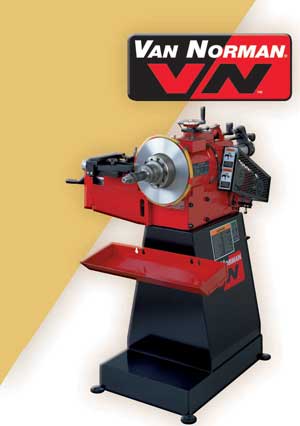

Norman 204C Heavy Duty Brake Lathe
The Most Rugged Medium-and Heavy-Duty
Combination Brake Lathe available today
- Simple, rapid setup and true one-cut finish capability
- Quality machine-tool construction
- The last brake lathe you’ll ever need
|
For further information
|
|
| |
Specifications: |
|
|
|
|
| |
Rotor Capacity |
4" - 24" (102 - 610 mm) |
|
Standard Accessories: |
|
| |
Maximum Rotor Friction Surface |
5 " (127 mm) |
|
Cone 1.969 X 3.438" |
101-0236-05 |
| |
Maximum Rotor Thickness |
2.5 "(64 mm) |
|
Cone 2.156 X 4.125" |
101-0237-02 |
| |
Drum Capacity |
*6" - 28" (152 - 711 mm) |
|
Cone 1.219 X 1.183" |
101-0242-45 |
| |
Maximum Drum Depth |
8.75" (222 mm) |
|
Cone 1.625 X 2.375" |
101-0243-00 |
| |
Flywheel (Flat or Stepped) Capacity |
*6" - 24" (152 - 610 mm) |
|
Tapered Cone Set
for 1" Arbor |
804-8410-13 |
| |
Maximum Flywheel Friction Surface |
5" (127 mm) |
|
Double Ended Cone
Set for 1" Arbor |
804-8658-22 |
| |
Spindle Speeds |
60, 100, 170 RPM |
|
Cone 1.32 X 1.67" |
804-8658-23 |
| |
Feed Speeds |
Infinitely Variable |
|
Cone 1.36 X 1.71" |
804-8658-24 |
| |
Per minute, in. (mm |
3.375" (85 mm) |
|
Cone 1..71 X 2.07" |
804-8658-25 |
| |
Per revolution, in. (mm) |
0.020 (508 mm) |
|
Cone 2.07 X 2.44" |
804-8658-26 |
| |
Motor |
1 HP (.700 kw) |
|
Cone 2.44 X 2.89" |
804-8658-27 |
| |
Export Shipping Weight |
835 lbs. (379 kg) |
|
Cone 1.15 X 1.80" |
804-8664-45 |
| |
|
|
|
Cone 3.9 X 4.55" |
804-8664-50 |
| |
|
|
|
1" Arbor with nut -
12" |
804-8691-88 |
| |
* Due
to the weight, larger diameter pieces may require the
optional 2" arbor |
|
Cone 2.12 X 4.0" |
804-4151-85 |
| |
|
|
|
Bell Clamp - 5.81"
(2) |
101-0235-40 |
| |
Ordering Information: |
|
|
Bell Clamp - 4.0" |
109-1011-09 |
| |
204C HD Brake Lathe 115/60/1
|
804-2474-01 |
|
Bell Clamp - 4.68" |
109-1012-06 |
| |
204C HD Brake Lathe 230/60/1 |
804-2474-05 |
|
Rotor Locator |
804-4151-77 |
| |
204C HD Brake Lathe 230/50/1
|
804-8651-44 |
|
Tool bar and bit
holder assy - drums |
804-8691-75 |
| |
|
|
|
Draw Bar |
804-8663-90 |
| |
Optional Accessories: |
|
|
Carbide Bit Package
(4 rotor/2drum) |
804-8665-63 |
| |
Hubless Adapter
Set, std size for 1" Arbor (2.03 - 3.93" Bore Range) |
804-2010-23 |
|
Silencers |
|
| |
2" Arbor Assembly |
804-2040-90 |
|
Hex Keys |
|
| |
11/16"
Arbor Assembly |
804-2049-41 |
|
Wrenches |
|
| |
Hubless Adapter Set-Lrg for 1" Arbor, 4.0 - 5.75" bore range |
804-8626-13 |
|
|
|
| |
Hubless Adapter Set-Lrg for 2" Arbor, 4.0 - 5.75" bore range |
804-8626-14 |
|
|
|
| |
Hubless Adapter Set-Sm. for 1" Arbor, 1.87-3.0" |
804-8659-59 |
|
|
|
| |
Light
Truck Set for 1" Arbor (3.9-5.65" bore range) |
804-8664-88 |
|
|
|
| |
Medium
Truck Set for 2" Arbor (2.15-6.1" bore range) |
804-8664-66 |
|
Replacement Bits: |
|
| |
Heavy
Duty Truck Set for 2" Arbors (5.45-8.3" bore range) |
804-8664-67 |
|
Rotor Bits (Pkg of
10)-3 cutting edges (1/16" radius) |
804-8665-61 |
| |
Hubless/Composite Rotor Adapter Kit |
804-8667-75 |
|
Drum Bits (Pkg of
10) |
804-8692-06 |
| |
2"
Arbor Assy - Extended 19-7/8" |
804-8677-10 |
|
|
|
| |
Outboard Support Kit |
804-8682-65 |
|
|
|
| |
Extra
Large Bell/Cone Set for 2" Arbor (8.06-9.95" bore range) for
Hubless Drums/Rotors |
804-8685-12 |
|
|
|
|
