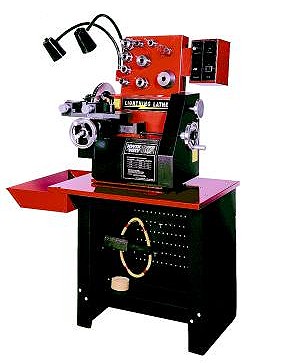

 Kwik-Way Model 104 "BASIC"

The World's Fastest Brake Lathe!

  • Fastest operating combination brake lathe in the world!

  • Cuts drums & rotors in Less Than One Minute

  • 4 times faster than conventional Brake Lathes

  • Heavy Duty Cast Iron, Dovetail Way Construction

  • Your investment is protected with Kwik-Way's Exclusive 5-2-1 Warranty


Ten Good Reasons to Buy a Kwik-Way Model 104 Lightning Lathe

  1. Increase shop efficiency & productivity - work piece machining in "One Minute"
  2. Variable Speed Spindle Control matches feed rate for perfect finish every time on all diameter drums & rotors.
  3. A proven history of innovative design and high quality manufacturing from Kwik-Way since 1920.
  4. Solid cast iron Dovetail Way construction assures years of vibration and trouble free operation.
  5. Positive rake tooling for optimum finish with a single pass, regardless of the depth of cut.
  6. Single tool Set-up using only one wrench. No additional hand tools to keep track of.
  7. A tool storage rack is conveniently mounted on the machine for easy access to cones, clamps, and spacers.
  8. Heavy duty Timken bearings assure long term and accurate spindle life.
  9. Three Tooling Packages available for selection to meet your specific shop requirements.
  10. The longest (5 yr) warranty protection of any Brake Lathe in the industry.

All Kwik-Way Brake Lathes Proudly "MADE IN THE USA"



For further information




Brake Lathe Specifications:     Ordering Information:

Rotor Capacity**

4-24"

   Model 104 "BASIC"
Lightning Lathe  		104-0001-05    $ 6,294.00

Maximum Rotor Thickness

2.85"

   (requires purchase of a tooling package to best suit your needs)

Drum Capacity**

6-28"



Drum Depth

9"



#1 Standard Tooling Kit

104-1000-01     $   930.00

Flywheel Capacity

6-24"



#2 Deluxe Tooling Kit

104-1000-02     $ 1170.00

Spindle Weight Capacity (Standard 1" Arbor)

150 lbs



#3 Super Tooling Kit

104-1000-03     $ 1380.00

Spindle Weight Capacity (Optional 1-7/8" Arbor)

300 lbs



Feed Rates - Rotor and Drum

0 - .026"



Optional Heavy Duty Bench
(sold separately)

104-0200-00     $   498.00



Feed Rate Per Minute

2.54"



Electrical Requirement

115V/60Hz/1Ph



Shipping Weight

480 lbs



* May require optional arbor set (102-1069-00) for drums over 14" (356mm) and rotors over 16" (406mm)

#1 Standard Tooling Kit includes adapters, tooling, and silencers to cover most passenger car and light truck drums and rotors up to 1/2 ton capacity.



  #1 Kit Part Number

104-1000-01

Includes the following items

Bell Clamps (2) 5-13/16" OD (148mm)

101-0235-40



Double Taper Cone #3 2.07"x2.44" (53x62mm)

101-0260-32

Bell Clamps 4" OD (102mm)

109-1011-09

   Double Taper Cone #4 2.45"x2.81" (62x71mm) 101-0260-42

Bell Clamps (2) 4-11/16" OD (119mm)

109-1012-06

   Spacer 1" Long 109-1032-09

Taper Cone #1 1-31/32"x3-7/16" (50x87mm)

109-0236-05

   Spacer 2" Long (2) 109-1033-06

Taper Cone #2 3-5/32"x4-1/8" (80x105mm)

101-0237-02

   Silencing Belt, vented rotor 108-1061-00

Taper Cone #L 1-5/8"x2-3/8" (41x60mm)

101-0243-00

   Silencing Belt, drum 101-0230-10

Double Taper Cone #0 1.30"x1.66" (33x42mm)

101-0260-02

   1-1/2" Arbor Wrench 000-8700-21

Double Taper Cone #1 1.26"x1.72" (35x44mm)

101-0260-12

   Arbor Spring 000-1806-70

Double Taper Cone #2 1.70"x2.06" (43x52mm)

101-0260-22

   Wrench, Hex 3/32" 000-0600-46
      T-Handle Wrench 5/32" 000-0600-66

#2 Deluxe Tooling Kit includes adapters, tooling, and silencers to cover most passenger cars and trucks up to 3/4 ton capacity, including a master hubless and composite rotor kit.



#2 Kit Part Number

104-1000-02

Includes the following items

Double Taper Cone #0 1.30"x1.66" (33x42mm)

101-0260-02



Master Hubless and Composite Rotor Adapter Set

102-0900-00

Double Taper Cone #1 1.26"x1.72" (35x44mm)

101-0260-12



Spacer 1" Long

109-1032-09

Double Taper Cone #2 1.70"x2.06" (43x52mm)

101-0260-22



Spacer 2" Long (2)

109-1033-06

Double Taper Cone #3 2.07"x2.44" (53x62mm)

101-0260-32



Silencing Belt, vented rotor

108-1061-00

Double Taper Cone #4 2.45"x2.81" (62x71mm)

101-0260-42



Silencing Belt, drum

101-0230-10

Double Taper Cone #5 2.84"x3.19" (72x81mm)

101-0260-52



1-1/2" Arbor Wrench

000-8700-21

Double Taper Cone #6 3.19"x3.56" (81x90mm)

101-0260-62



Wrench, Hex 3/32"

000-0600-46


T-Handle Wrench 5/32"

000-0600-66
#3 Super Tooling Kit includes adapters, tooling, and silencers for most passenger cars and trucks up to 1 ton capacity including a deluxe Kwik Chuck adapter set for hubless and composite drums and rotors.



#3 Kit Part Number

104-1000-03

Includes the following items

Double Taper Cone #0 1.30"x1.66" (33x42mm)

101-0260-02



Master Kwik-Chuck Adapter (2.12"-5.75"

102-0800-50

Double Taper Cone #1 1.26"x1.72" (35x44mm)

101-0260-12



Spacer 1" Long

109-1032-09

Double Taper Cone #2 1.70"x2.06" (43x52mm)

101-0260-22



Spacer 2" Long (2)

109-1033-06

Double Taper Cone #3 2.07"x2.44" (53x62mm)

101-0260-32



Silencing Belt, vented rotor

108-1061-00

Double Taper Cone #4 2.45"x2.81" (62x71mm)

101-0260-42



Silencing Belt, drum

101-0230-10

Double Taper Cone #5 2.84"x3.19" (72x81mm)

101-0260-52



1-1/2" Arbor Wrench

000-8700-21

Double Taper Cone #6 3.19"x3.56" (81x90mm)

101-0260-62



Wrench, Hex 3/32"

000-0600-46


T-Handle Wrench 5/32"

000-0600-66
