 Van
Norman FG4000R RACING Flywheel Grinder
Versatile. Rugged.
PORTABLE.
Designed for easy access, portability and only the BEST
results.
-
Sturdy cart and low center of gravity for stability and
portability - use it where you need it then pack it up
and take it on the road
-
Built of solid cast parts makes it rugged - built to
perform and built to last
-
The tooling kit gives you all the tooling necessary to
grind clutch discs, pressure plates and racing-style
flywheels
-
Equipped with an adapter to allow for a vacuum hook-up
for dust collection
-
Optional coolant tank for wet grinding applications
-
Optional hold-down tooling is available to grind floater
plates
COMPACT SIZE: 32" wide by 45" deep by 48"
machine height Plus 8.5" cart height

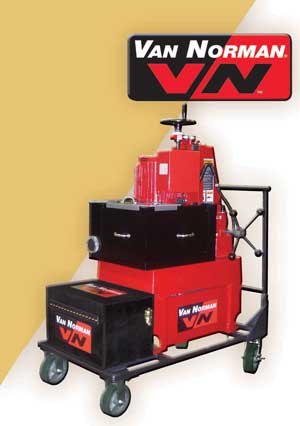

Van Norman FG4000R RACING Flywheel Grinder
(Includes handy cart with removable handle for easy access to
machine.)
|
For further information
|
|
|
Specifications: |
|
|
|
|
| Grinding
Capacity |
16" (406mm) |
|
Standard
Accessories: |
|
| Height
Capacity |
6.75" (171mm) |
|
Wheel Spacer 1.50" (38.10mm) |
794-8124-71 |
| Table
Diameter |
12" (305mm) |
|
Wheel
Spacer 2.00" (50.80mm) |
794-8011-90 |
| Grinder
Head Motor (3450rpm) |
5hp (3.5kw) |
|
Wheel
Spacer 4.00" (101.6mm) |
794-8687-23 |
| Rotating
Table Motor |
1/4hp (.177kw) |
|
3.75"
Formula X CBN Grinding Wheel |
794-8040-00 |
| Overall
Height on Cart |
56.5" (1435mm) |
|
6.00"
Formula X CBN Grinding Wheel |
794-8060-00 |
| Overall
Depth with Cart |
45" (1143mm) |
|
3" Wheel
Mounting Flange |
794-8686-97 |
| Overall
Width with Cart |
32" (813mm) |
|
4" & 6"
Wheel Mounting Flange |
794-8011-88 |
| |
|
|
Wheel
Mounting Bolt, 1.00" (25.4mm) |
000-0170-24 |
| |
|
|
Wheel
Mounting Bolt, 2.50" (63.5mm) |
000-0170-55 |
|
Ordering
Information: |
|
|
Wheel
Mounting Bolt, 2.75" (59.85mm) |
000-0170-55 |
| FG4000R
Racing Flywheel Grinder (230/60/3) |
794-8684-05 |
|
Wheel
Mounting Bolt, 4.50" (114.3mm) |
794-8692-38 |
| FG4000R
Racing Flywheel Grinder (230/60/1) |
794-8684-06 |
|
Wheel
Mounting Bolt, 4.25" (107.95mm) |
794-8692-39 |
| |
|
|
3/8" Hex
Wrench |
000-0600-18 |
|
|
|
5/16" Hex
Wrench |
000-0600-20 |
|
|
1/8" Hex
Wrench |
000-0600-54 |
|
|
5/32" Hex
Wrench |
000-0600-62 |
|
|
3/16" Hex
Wrench |
000-0600-70 |
| |
1/4" Hex
Wrench |
000-0601-00 |
| |
T-Handle
Hex Wrench (1/4) |
794-8684-98 |
|
FG4000R Racing
Tooling Package |
|
T-Handle
Hex Wrench (3/16) |
794-8685-01 |
|
|
|
|
T-Handle
Wrench (5/16) |
794-8017-32 |
|
Optional
Accessories: |
|
|
E-Z Lock
Insert (2 Included) |
794-8017-44 |
| Hold-Down
Tooling for Floater Plates |
794-8684-93 |
|
E-Z Lock
Insert Extractor |
794-8637-45 |
| Coolant
System |
794-8687-20 |
|
Head Tilt
Setting Kit |
794-8685-32 |
| |
|
|
Shop Vac
Adapter Assembly |
794-8685-54 |
| |
|
|
Clutch Disc
Mounting Ring |
794-8687-06 |
| |
|
|
Pressure
Plate Mounting Ring |
794-8687-08 |
| |
|
|
Flywheel
Mounting Ring |
794-8687-10 |
| |
|
|
O-RIng |
794-8013-12 |
| |
|
|
Oil Level
Gauge |
794-8013-73 |
|
|
|
Lead screw
Lubricant |
794-8011-52 |
|
|
|
Table
Lubricant, 1 Qt (.946 liter) |
794-8011-55 |
|
|
|
Tool Box |
004-0057-94 |
|
|
|
|
|
|
