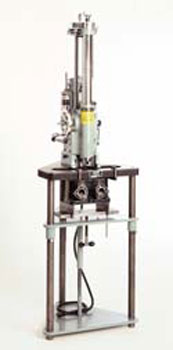

Kwik-Way 1291 Small Engine Boring Fixture




The ideal fixture for Kwik-Way Boring Bars in applications involving single through four cylinder assemblies. Simple and easy to use, the Model 1291 is a proven and effective part of the Kwik-Way small engine boring system.

  • Elongated slot accommodates single, twin and four cylinder blocks.


  • Floating clamp plate locates cylinders quickly and accurately.






For further information






  Specifications:
  Overall Height 35-1/2" (902mm)   Standard Accessories:
  Overall Width 21-1/2" (546mm)   Floating Clamp Plate Assembly 057-1279-45
  Overall Depth 20" (508mm)   Parallel (matched pair) 057-1286-07
  Bore Diameter 4-1/2" (114mm)   1" Anchor Nut 062-0912-58
  Load Weight, Maximum 250 lbs (114kg)   Socket Cup Point Set Screw for Anchor Nut 000-0496-46
  Total Width of Boring Plate Opening 16-3/8" (416mm)
  Inside Working Height (Centerline of Support Bar to bottom of parallel) 3"-20" (76-508mm)
  Shipping Weight 300 lbs (136.3kg)

  Ordering Information:
  1291 Small Engine Boring Fixture 057-1291-07
  Optional Small V-Block Mounting Kit 054-0300-00
