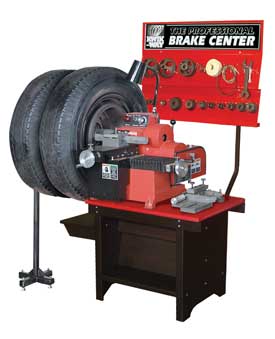

Kwik-Way 341 Heavy Duty Bus & Truck Brake Lathe

Designed for Medium and Heavy Duty Trucks & Buses

  • Greater working capacity and machining speed than any other automotive-priced brake lathe

  • Three Spindle Speeds (50, 80, and 120 RPM) with rapid change and GearFree™ Spindle Drive

  • Infinitely variable feed rates for both discs and drums

  • Includes Dual Wheel Drum Kit allowing you to turn up to 700 lb. assembled dual wheel drums with Outboard Support Kit (standard)

  • Machines counter clockwise, driving chips down into chip tray and away from the operator



Ten Good Reasons to Buy a Kwik-Way Model 102 Combination Brake Lathe

  1. A proven history of innovative design and high quality manufacturing from Kwik-Way since 1920.
  2. Solid cast iron Dovetail Way construction assures years of vibration and trouble free operation.
  3. Compact design minimizes floor space requirements.
  4. Positive rake tooling for optimum finish with a single pass, regardless of the depth of cut.
  5. Single spindle speed rate set for optimum surface finish and tool life. Eliminates the need for operator adjustments of feed and speed rates.
  6. Single tool Set-up using only one wrench. No additional hand tools to keep track of.
  7. A tool storage rack is conveniently mounted on the machine for easy access to cones, clamps, and spacers.
  8. Heavy duty Timken bearings assure long term and accurate spindle life.
  9. Three Tooling Packages available for selection to meet your specific shop requirements.
  10. The longest (5 yr) warranty protection of any Brake Lathe in the industry.

All Kwik-Way Brake Lathes Proudly "MADE IN THE USA"




For further information






  Specifications:


Feed Rates Infinitely Variable

(0 - 1.61")



Standard Accessories:





Spindle Speeds

50/80/120 RPM



Outboard Support Kit

804-8692-14



Drum Diameter

34"



Dual Wheel Drum Kit

804-8693-85



Wheel Tire Diameter

60"



Light Truck Set for 1" Arbor (bore range 3.9-5.65")

804-8664-88



Drum Depth

10.5"

  Med. Truck Set for 2" Arbor (bore range 2.15-6.1") 804-8664-66


Rotor Diameter

30"

  Heavy Truck Set for 2" Arbor (bore range 5.45-8.3") 804-8664-67


Rotor Depth

5"

  Cone 1.969 X 3.438" 101-0236-05


Rotor Thickness

4"

  Cone 2.156 X 4.125" 101-0237-02


Drum/Rotor weight with 1" Arbor

150 lbs

  Cone 1.219 X 1.183" 101-0242-45


Drum/Rotor weight with 2" Arbor

 300 lbs

  Cone 1.625 X 2.375" 101-0243-00


Drum/Rotor weight with Outboard Support

700 lbs

  Carbide Bit Package 804-8410-31


Motor

1 HP

  Double Ended Cone Set for 1" Arbor                  (contains the following cones:) 804-8658-22


Shipping Weight with optional bench

935 lbs

  Cone 1.32 X 1.67" 804-8658-23
  Dimensions with optional Bench 22" X 38" 22" X 38"   Cone 1.36 X 1.71" 804-8658-24
  Dimensions with Outboard Support and Dual Wheel Kits and optional Bench  22" X 81"   Cone 1..71 X 2.07" 804-8658-25
        Cone 2.07 X 2.44" 804-8658-26


Order Information:



  Cone 2.44 X 2.89" 804-8658-27
  341 Heavy Duty Bus & Truck Brake Lathe (Outboard Support & Dual Wheel Drum Kits) 103-8411-00   1" Arbor with nut - 12" 804-8691-88
  NOTE: 50 Hertz machines available for export



  Bell Clamp - 5.81" (2) 101-0235-40






  Bell Clamp - 4.0" 109-1011-09


Optional Accessories:

    Bell Clamp - 4.68" 109-1012-06


Heavy Duty Bench

804-8410-33   Tool bar and bit holder assy - drums 804-8691-75
        Draw Bar 804-8663-90
        Silencers
        Hex Keys
        Wrenches
        Spacers, Springs and Washers
