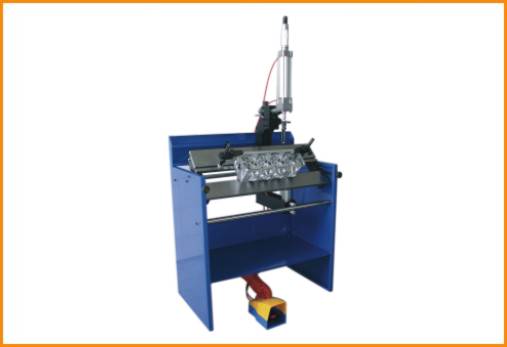

BST 860 Work station for cilinder head

WORK STATION FOR OPERATION ON CYLINDER HEADS
BST 860 cylinder head work station allows all kind of operations on cylinder heads as disassembling, reassembling and their all-around control in an efficient, practical and safe manner.
Several adjustments of BST 860 grant to find always the best working position, allowing therefore an easy access of its points.
The bench is provided also with a pneumatic cylinder for operating on valves assembling and disassembling: it offers, thanks to its several regulations, plenty of working positions to be adapted to all kind of cylinder heads; it's activated by a foot pedal which leaves always the hands free and is equipped with a pressure regulator complete of filter that grant a wide working pressure adjustment.
Standard equipment includes a set of different size of finger tip retainers for any application.






Specifications
Boring capacity 24 - 85 mm
Max spindel travel 100 mm
Min-Max distance height supports to bar C/L 100 - 376 mm
Max cylinder head and block lenght 810 mm
Max cylinder head and block width 300 mm
Variable spindle rotation speeds

250 - 1000 rpm
Spindle traverse rate 0 - 1000 mm/min
Feed motor power 0,50 HP
Dimensions (LxLxH) 1780x800x1385 mm
Weight 375 Kg
