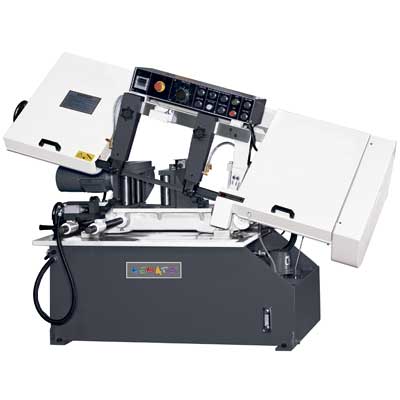

 BMT 250GH. GHV/ 300GH. GHV/ 380GH. GHV


BMT 300GH



BMT 250GH. GHV/ 300GH. GHV/ 380GH. GHV
FEATURES :
Auto. feeding (Roller stand)
Manual clamping vise
Auto. lifting
Built-in saw blade breakage protection
OPTIONAL ACCESSORIES :
Hydraulic clamping vise



 SPECIFICATION:
 MODEL BMT 250GH / 250GHV BMT 300GH / 300GHV BMT 380GH / 380GHV
 CAPACITY 90°  254  230  150 x 305 mm  300  230  150 x 330 mm  380  280  150 x 410 mm
 BLADE SIZE 27 x 3820 mm 27 x 3820 mm 27 x 4625 mm
 MOTOR 2HP (1.5kw) 3HP (2.25kw) 3HP (2.25KW)
 SPEED RANGE 23,40,55,67 mpm (FH)
 		 14,23,27,36,46,73 mpm (FH) 14,24,29,38,48, 6 mpm (FH)
18~90 mpm (FHV) 20~96 mpm (FHV) 21~100 mpm (FHV)
 PACKING SIZE 2083 x 1016 x 1372 mm 2083 x 1016 x 1372 mm 2286 x 1016 x 1474 mm
 N.W./ G.W. 700 / 800 kgs 900 / 1050 kgs 1100 / 1200 kgs
 CONTAINER LOADS 6 sets / 20' 6 sets / 20' 6 sets / 20'
*The above specifications are subject to change without prior notice.
