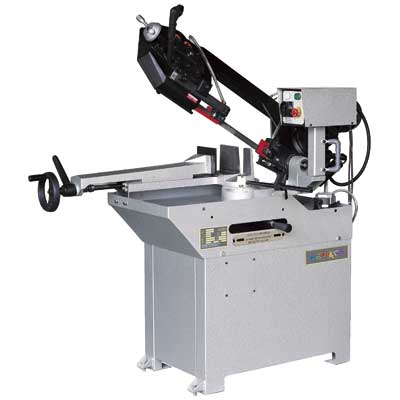

BMT 260SL/ 260SLV


BMT 260SL



BMT 260SL/ 260SLV
 FEATURES:
Cast iron saw frame
Bearings saw blade guide
Trigger switch
Upright operation console
0~60 cutting angle
Available in single phase motor but only applicable for1 speed cutting-BMT 260SL
OPTIONAL ACCESSOREIES:
Blade tension gauge, mechanical type
Blade tension gauge, hydraulic type
Safety device for saw blade breakage
Light duty htdraulic cylinder & auto. cutting device, power off switch at the end of auto. cutting.



 SPECIFICATION:
 MODEL BMT 260SL BMT 260SLV
 CAPACITY 90 227 mm 220 X 220mm 260 x 110 mm
 CAPACITY 45  150 mm 145 x 145 mm 200 x 125 mm
 CAPACITY 60  90 mm 85 x 85 mm
 BLADE SIZE 27 x 0.9 x 2460 mm
 BLADE SPEED 50HZ, 4P, 72m/min / 8P, 36 m/min Variable speed 20~85 m/min
 MOTOR 1.5 HP (1.1kw), 4P, 1430 RPM 2 HP (1.5kw), DC motor-220V or 400V
 PACKING SIZE 1549 x 737 x 921mm (61" x 29" x 36.2"-37cu.ft)
 N.W./ G.W. 216 / 250 kgs
 CONTAINER LOADS 22 sets/ 20' , 46 sets/ 40'
*The above specifications are subject to change without prior notice.
