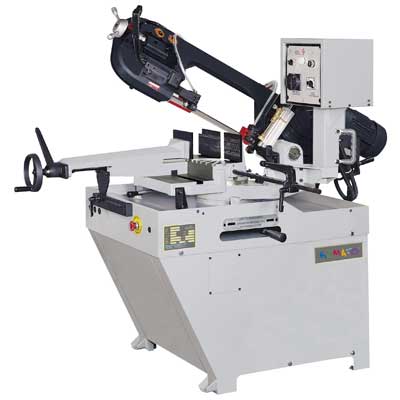

BMT 260S


BMT 260S



BMT 260S
FEATURES:
Cast iron saw frame
Carbide saw blade guide
Trigger switch
Blade tension gauge, hydraulic type
Heavy duty hydraulic cylinder & auto. cuttingdevice, power off switch at the end of auto. cutting.
0~60 (R), 0~45 (L)cutting angle
Safety device for saw blade breakage.
Upright operation concole with push button
Switch for auto. cutting
Dual angles vise



 SPECIFICATION:
 MODEL BMT 260S
 CAPACITY 90 227 mm 220 X 220mm 260 x 110 mm
 CAPACITY 45  150 mm 145 x 145 mm 200 x 125 mm
 CAPACITY 60  90 mm 85 x 85 mm
 CAPACITY 45(L)  110 mm 110 x 110 mm 160 x 110 mm
 BLADE SIZE 27 x 0.9 x 2460 mm
 BLADE SPEED 50HZ, 4P, 72 m/min / 8P, 36 m/min
 MOTOR 1.5 HP (1.1kw), 4P, 1430 RPM
 PACKING SIZE 1549 x 737 x 1054mm (61" x 29" x 41.5 "-42.5 cu.ft)
 N.W./ G.W. 280 / 330 kgs
 CONTAINER LOADS 22 sets/ 20' , 46 sets/ 40'
*The above specifications are subject to change without prior notice.
