BMT 80150/ 100150/ 80200/ 100200/ 80300/ 100300/ 80400/ 100400AHR


BMT 100150AHR





BMT 80150/ 100150/ 80200/ 100200/ 80300/ 100300/ 80400/ 100400AHR

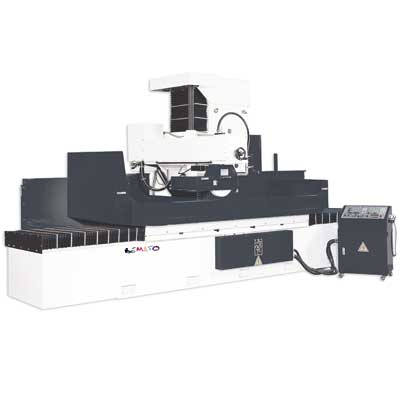

*Picture shown with optional AD5 Auto. down feed and wheel dressing device.
FEATURES :
Hydraulic longitudinal feed. Direction changed by sensor & solenoid valve.
Automatic cross feed. Direction changed by stopping dog and limit switch.
Vertical feed driven by AC motor.
Longitudinal / Cross: 2 Vee ways.



SPECIFICATION:
MODEL BMT 80150AHR /
BMT 100150AHR
BMT 80200AHR /
BMT 100200AHR
BMT 80300AHR /
BMT 100300AHR
BMT 80400AHR /
BMT 100400AHR
 GRINDING SURFACE OF TABLE 800 x 1500 mm
1000 x 1500 mm
800 x 2000 mm
1000 x 2000 mm
800 x 3000 mm
1000 x 3000 mm
800 x 4000 mm
1000 x 4000 mm
 TABLE TRAVEL (Y x X) 800 x 1500 mm
1000 x 1500 mm
800 x 2100 mm
1000 x 2100 mm
800 x 3000 mm
1000 x 3000 mm
800 x 4000 mm
1000 x 4000 mm
 SPINDLE CENTER TO TABLE 800 mm, Opt.-1000 mm 700mm, Opt.-900 mm
 LONGITUDINAL FEED 3~25 M/min, 6 steps
 RAPID CROSS FEED 60 HZ-1050 mm/min,     50 HZ-900 mm/min
 CROSS FEED INCREMENT 5 mm / Rev.    0.02 mm / Graduation
 VERTICAL FEED BY MPG (x1) 0.1 mm, (x5) 0.5 mm , (x10) 1 mm / Rev.
(x1) 0.001 mm, (x5) 0.005 mm , (x10) 0.01 mm / Graduation
 RAPID VERTICAL FEED 400 mm/minh
 WHEEL SPEEDS 60 HZ-1740 RPM,    50 HZ-1450 RPM
 WHEEL DIMENSION 406 x 50 x 127 mm, Opt.-406 x 75 x 127 mm
 SPINDLE MOTOR 10 HP, Opt.-15 HP
 HYDRAULIC PUMP MOTOR 7.5 HP 10 HP 15 HP
 N.W. 12800 / 13800 kgs 14300 / 15300 kgs 17300 / 18300 kgs 20300 / 21300 kgs
 G.W. 13800 / 14800 kgs 15500 / 13500 kgs 18800 / 19800 kgs 21800 / 22800 kgs
 MACHINE DIMENSION
(L x W x H) (cm)
516 x 240 x 256
516 x 266 x 256
626 x 240 x 256
626 x 266 x 256
846 x 240 x 256
846 x 266 x 256
1066 x 240 x 256
1066 x 266 x 256
 PACKING DIMENSION
(L x W x H)(cm)
C / NO.1 546 x 258 x 297
546 x 276 x 297
650 x 258 x 297
650 x 276 x 297
750 x 258 x 297
750 x 276 x 297
850 x 258 x 297
850 x 276 x 297
C / NO.2  165 x 165 x 206 cm
* The above specifications are subject to change without prior notice.
