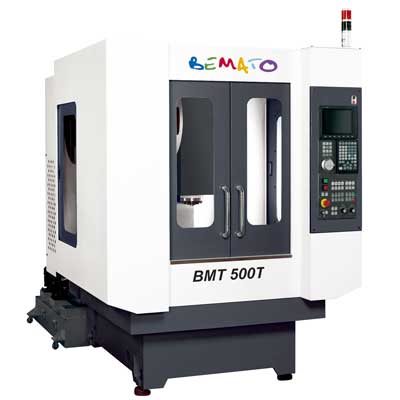

BMT 500T


BMT 500T




BMT 500T
STANDARD ACCESSORIES:
MITSUBISHI control 64ASM/ color LCD monitor
12000 RPM direction coupling drive spindle
Extra low inertia spindle motor (For MITSUBISHI only)
Arm type tool magazine (20 tools), T-T 1sec.
Coolant system
Fully enclosed guarding
Work lamp
Auto. lubrication system
Operation indicator light
Spindle air blow
Automatic coolant flush system
Workpiece air dusting device
Ring type tool coolant flush
Rigid tapping
Heat exchanger for electrical cabinet
Adjustment tools and tool box
Levelling bolts and pads
Instruction and maintenance manual
FEATURES:
MITSUBISHI M70 control / color LCD monitor
BT30 pull stad
Transformer
15000 RPM (ceramic bearings) direct coupling drive spindle
4th axis wire preparation(NC rotary table)
4th axis rotary table
Spindle oil cooler
Tools presetter
Chain type chip conveyor
Oil skimmer
High pressure 20 bar coolant through spindle only for BT30
and machine with MITSUBISHI control



 SPECIFICATION:
 MODEL BMT 500T
 TRAVEL
 X AXIS TRAVEL 500 mm
 Y AXIS TRAVEL 380 mm
 Z AXIS TRAVEL 400 mm
 TABLE
 TABLE SIZE 350 x 380 mm
 T-SLOT (NO. x W x P) 3 x 18 mm x 100 mm
 MAX. LOAD PERMISSIBLE 200 kgs
 SPINDLE
 DISTANCE FROM SPINDLE NOSE TO TABLE 150~550 mm
 DISTANCE FROM SPINDLE CENTER TO COLUMN 430 mm
 SPINDLE TAPER 7 / 24 BT30
 SPINDLE SPEED Direct drive: 12000 RPM (15000 RPM-OPT.)
 SPINDLE DIAMETER 50 mm
 AXIS FEED
 RAPID FEEDRATE (X/ Y/ Z) 48 / 48 / 48 m/min
 CUTTING FEEDRATE 10 m/min
 Z AXIS COUNTER WEIGHT None
 BALLSCREW DIAMETER & PITCH 32 mm , P16
 ACCURACY VDI 3441 (JIS B6338)
 POSITIONING P0.014 (±0.004/ 300 mm)
 REPEATABILITY PS 0.010 (±0.003 mm)
 ATC
 TOOL SHANK BT30
 TOOL NUMBER Arm 20
 TOOL CHANGING TIME 60HZ: T-T 1sec. , C-C 2.5sec.
 PULL STUD MAS 403 P30T-1
 MAX. TOOL DIAMETER 60 mm / 100 mm
( With Adjacent tool / Without Adjacent tool )
 MAX. TOOL LENGTH 200 mm
 MAX. TOOL WEIGHT 3 kgs
 MOTOR
 SPINDLE MOTOR (MITSUBISHI) 2.2 kw (Cont.) / 3.7 kw(15 min), Extra low inertia motor
 FEED MOTOR FOR X/ Y/ Z AXIS (MITSUBISHI) X, Y: 1.5kw , Z: 3 kw (HF series)
 COOLANT PUMP MOTOR 1 HP
 GENERAL INFORMATION
 TOTAL POWER CONSUMPTION 9 KVA
 AIR PRESSURE CAPACITY 6 kgs/ cm2, 150 L/min
 MACHINE DIMENSION (W x D x H) 1520 x 2400 x 2370 mm
 MACHINE WEIGHT 2800 kgs
*The above specifications are subject to change without prior notice.
