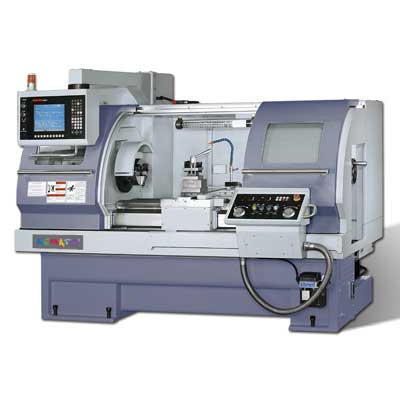

BMT 1740NL/ 176


BMT 1740NL






BMT 1740NL/ 1760NL

 SPECIFICATION:
 MODEL BMT 1740NL BMT 1760NL
 CAPACITY
 NO. OF CONTROL AXIS 2 axis
 SWING OVER BED Ø432mm
 STD. D1-6 DISTANCE BETWEEN CENTERS 950mm 1450mm
 MAX. WORKING LENGTH
(D1-6-STD.)
4 WAY TOOL POST 800mm 1300mm
HYD. P8 TURRET 650mm 1150mm
 MAX. WORKING DIA. 4 WAY TOOL POST 230mm
HYD. P8 TURRET 220mm
 WIDTH OF BED 305mm
 HEAD STOCK AND MAIN SPINDLE
 SPINDLE NOSE , INTERNAL TAPER D1-6, MT6 (A1-6, MT6-OPT.)
 SPINDLE BORE Ø52.5mm (Ø51mm-OPT.)
 SPINDLE SPEED GEAR STEPS Pneumatic change 2 steps
RANGE L: 30~450RPM
H: 451~2800RPM
 CROSS SLIDE & CARRIAGE
 CROSS SLIDE TRAVEL (X-AXIS) 230mm
 LONGITUDINAL TRAVEL (Z-AXIS) 900mm 1400mm
 AC SERVO MOTOR (X / Z AXIS) 0.85 KW, 5.39 N.m / 1.3 KW, 8.34 N.m
 DIA. OF BALL SCREW(X / Z AXIS) Ø20mm, P5 C5 / Ø40mm, P10 C5
 RAPID TRAVERSE SPEED (X / Z AXIS) 5M/min. / 7.5M/min.
 TURRET
 TOOL STATION
Manual 4 way tool post (Electricl H4 turret-OPT.) (Hydraulic P8 turret-OPT.)
 SIZE OF EXTERNAL TURNING TOOL
20mm 20mm 20mm
 BORING BAR DIAMETER
    20mm
 TAILSTOCK
 QUILL DIAMETER Ø68mm
 QUILL TRAVEL 153mm
 TAPER OF CENTER MT4
 MOTOR
 MAIN SPINDLE Inverter Motor AC 5.5kw (77.5HP). Inverter (10HP)
 HYDRAULIC OIL PUMP OPT. 0.75KW (1HP), OPT. 1.5KW (2HP)
 FORCED LUBRICATION FOR HEADSTOCK 1/4HP
 COOLANT PUMP 1/6HP
 TANK CAPACITY
 HYDRAULIC TANK OPT. 25 LITER (5.5GAL.), OPT. 40 LITER (8.8 GAL.)
 COOLANT TANK 60L (13.2 GAL.) 85L (18.7 GAL.)
 MEASUREMENT
 WEIGHT (NET / GROSS) 2150 / 2650KGS 2400 / 2900KGS
 PACKING SIZE (L x W x H) 2660 x 2015 x 2240mm 3160 x 2015 x 2240mm
*The above specifications are subject to change without prior notice.
