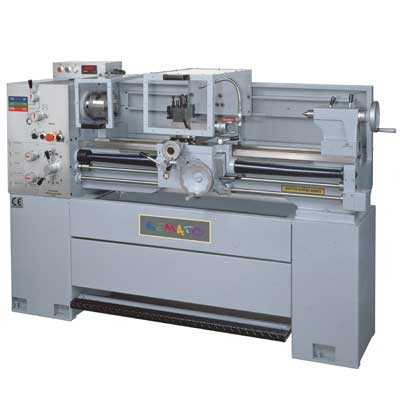

BMT 1330SM(SMV)/ 1340SM(SMV)/ 1430SM(SMV)/ 1440SM(SMV)

 SPECIFICATION:
 MODEL BMT 1330SM / 1340SM BMT 1330SMV / 1340SMV BMT 1430SM / 1440SM BMT 1430SMV / 1440SMV
 CAPACITY
 SWING OVER BED 330mm 356mm
 SWING OVER CROSS SLIDE 195mm 220mm
 DISTANCE BETWEEN CENTER 750 / 1000 mm
 BED
 WIDTH OF BED 190mm
 SWING OVER GAP 490mm 515mm
 SPINDLE
 SPINDLE NOSE D1-4 camlock
 HOLE THROUGH SPINDLE 38mm
 TAPER OF  SPINDLE BORE M.T.NO.5
 NO. OF SPINDLE SPEED 12STEPS (SM series) , 3 STEPS (SMV series)
 RANGE OF SPINDLE SPEED 45~1800RPM (SM series) , 30~2000RPM (SMV series)
 TOOL SLIDE
 TRAVEL OF CROSS SLIDE 165mm
 COMPOUND REST TRAVEL 85mm 90mm
 MAX. SIZE CUTTING TOOL 16mm 22mm
 TAIL STOCK
 TRAVEL OF TAIL STOCK BARREL 110mm
 TAPER IN TAILSTOCK BARREL M.T.NO.3
 DIAMETER OF BARREL 40mm
 THREAD
 LEADSCREW DIAMETER & PITCH DIA. 25mm , Pitch 6mm / DIA. 1 in 4 D.P.I.
 INNCH THREADS 4-56 T.P.I. (32Nos)
 METRIC THREADS 0.4-7.0mm (32Nos)
 MODULE PITCHES 0.4-7.0 MOD.-Metric , 0.2-3.5MOD(27Nos)-Inch
 DIAMETRAL PITCHES 8-120 DP (32Nos)
 FEEDS
 FEED ROD DIAMETER Dia. 19mm
 RANGE OF LONGITUDINAL FEEDS 0.067-1.485 mm/rev. , 0.0033-0.0736 in/rev.(40 Nos)
 OF CROSS FEEDS 0.033-0.742mm/rev. , 0.0011-0.02450 in/rev.(40 Nos)
 MEASUREMENT
 NET WEIGHT 650 / 700KGS 700 / 750KGS
 GROSS WEIGHT 770 / 820KGS 830 / 880KGS
 PACKING SIZE
 (L x W x H)
67" x 30" x 58 " /
77" x 30" x 58 "
67" x 30" x 59 " /
77" x 30" x 59 "
*The above specitications are subject to change without prior notice.
