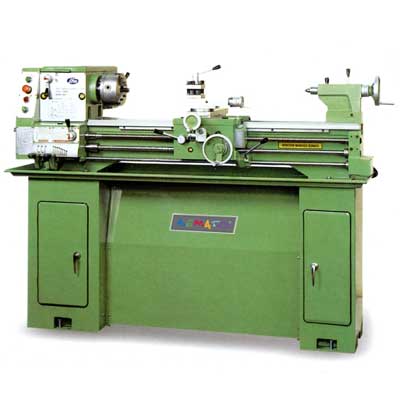

BMT 1224B(BV)


BMT 1340BV


BMT 1224B




BMT 1224B(BV)/ 1236B(BV)/ 1340B(BV)

 SPECIFICATION:
 MODEL BMT 1224B / 1224BV BMT 1236B / 1236BV BMT 1340B / 1340BV
 CAPACITY
 SWING OVER BED 306mm 306mm 330mm
 SWING OVER CROSS SLIDE 186mm 186mm 210mm
 HEIGHT OF CENTER 153mm 153mm 165mm
 DISTANCE BETWEEN CENTER 610mm 915mm 1000mm
 BED
 WIDTH OF BED WAY GAP TYPE 190mm
 LENGTH OF BED 1220mm 1525mm 1625mm
 SWING OVER GAP 445mm 445mm 470mm
 LENGTH OF GAP 240mm
 WIDTH IN FRONT OF FACE PLATE 150mm
 SPINDLE
 SPINDLE NOSE MOUNTING D1-4 camlock
 SPINDLE BORE 40mm
 TAPER OF  SPINDLE BORE M.T.NO.5
 NO. OF SPINDLE SPEED 12STEPS (B series)/ 2 STEPS (BV series)
 RANGE OF SPINDLE SPEED 65~1280RPM (B series) / 40~2000RPM (BV series)
 TOOL SLIDE
 TRAVEL OF CROSS SLIDE 170mm
 TRAVEL OF TOP SLIDE 90mm
 MAX. SIZE CUTTING TOOL 13mm
 TAIL STOCK
 TRAVEL OF TAIL STOCK BARREL 100mm
 TAPER IN TAILSTOCK BARREL M.T.NO.3
 DIAMETER OF BARREL 32mm (B series) / 40mm (BV series)
 THREAD
 LEADSCREW DIAMETER & PITCH DIA. 22mm , Pitch 4mm , 7/8" , 8TPI
 INNCH THREADS 3-24TPI (8Nos)-Metric , 2-56TPI (34Nos)-Inch
 METRIC PITCHES 0.5-10mm (21Nos)-Metric , 0.5-12mm(33 Nos)-Inch
 FEEDS
 FEED ROD DIAMETER Dia. 19mm
 RANGE OF LONGITUDINAL FEEDS 0.040-0.800mm/rev.(21)-Metric , 0.0016-0.0460 in/rev.(25)-Inch
 RANGE OF CROSS FEEDS 0.020-0.400mm/rev.(21)-Metric , 0.0005-0.0150 in/rev.-Inch
 MOTOR
 MAIN SPINDLE 2HP 2HP 3HP
 COOLANT PUMP 1/8HP
 MEASUREMENT
 WEIGHT (NET / GROSS) 500 / 620KGS 550 / 670KGS 600 / 720KGS
 PACKING SIZE (L x W x H) 59" x 30" x 60" 71" x 30" x 60" 75" x 30" x 61"
*The above specitications are subject to change without prior notice.
