BMT 1100RD/ 1280RD



BMT 1100RD

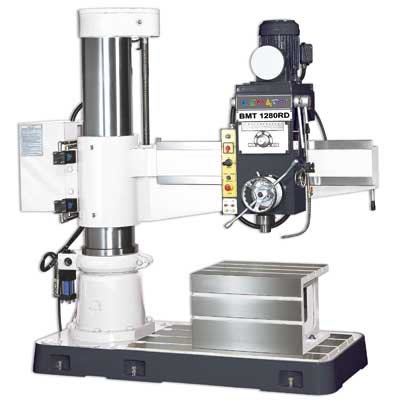

BMT 1280RD

BMT 1100RD/ 1280RD




 SPECIFICATION:
 MODEL BMT 1100RD BMT 1280RD
 DRILLING CAPACITY STEEL 50mm 50mm
CAST IRON 60mm 60mm
 TAPPING CAPACITY STEEL 25mm 25mm
CAST IRON 32mm 32mm
 BORING CAPACITY STEEL 85mm 85mm
CAST IRON 120mm 120mm
 SPINDLE STROKE (H) 250mm 250mm
 SIZE OF MORSE TAPER MT4 MT4
 SPINDLE SPEED 12 speeds, 44~1500RPM 12 speeds, 44~1500RPM
 SPINDLE FEEDS 0.05/ 0.09/ 0.15mm/rev. 0.05/ 0.09/ 0.15mm/rev.
 COOLANT DIAMETER (A) 300mm 300mm
 MAX. DISTANCE BETWEEN COLUMN
 SURFACE TO SPINDLE CENTER (B)
1145mm 1245mm
 MIN. DISTANCE BETWEEN COLUMN
 SURFACE TO SPINDLE CENTER (C)
330mm 330mm
 HORIZONTAL TRAVEL OF HEADSTOCK (D) 815mm 917mm
 MAX. DISTANCE BETWEEN BASE TO SPINDLE (E) 1230mm 1230mm
 MINI. DISTANCE BETWEEN BOSE TO SPINDLE (F) 540mm 540mm
 OVERALL HEIGHT OF COLUMN (G) 2160mm 2160mm
 MACHINE HEIGHT FROM FLOOR (I) 2585mm 2585mm
 DIMENSION OF BASE 1800 x 800 x 170mm 1800 x 800 x 170mm
 EFFECTIVE AREA OF TABLE 650 x 500 x 410mm 650 x 500 x 410mm
 SPINDLE DRIVE MOTOR 3HP 3HP
 ARM ELEVATION MOTOR 2HP 2HP
 COOLANT PUMP 1/8HP 1/8HP
 OIL MOTOR - 1HP
 INVERTER - -
 NET WEIGHT 2000kgs 2050kgs
 GROSS WEIGHT 2100kgs 2150kgs
 PACKING DIMENSION 2010 x 1030 x 2230mm 2290 x 1100 x 2230mm
*The above specifications are subject to change without prior notice.
