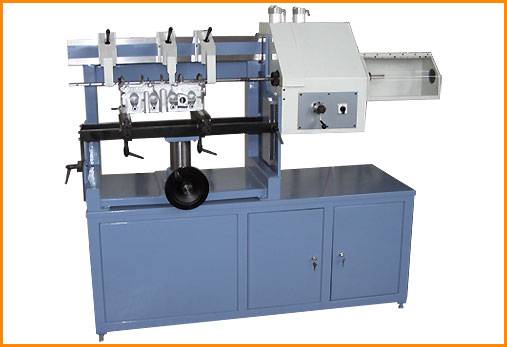

LBM 850 Line boring machine

LINE BORING MACHINE FOR CYLINDER HEADS AND BLOCKS
The Line Boring Machine LBM 850 allows the reconditioning of housing holes either of camshaft cylinder heads and crankshaft blocks of cars and light trucks as well.
The boring bar is hold by three sturdy, movable arms which offer high rigidity while machining, whilst perfect and quick centering of the workpiece respect to the boring seats is allowed thanks to fine adjustment knobs, either in height and cross movements, assisted by a pair of centering devices complete of dial indicators.








Specifications
Boring capacity 24 - 85 mm
Max spindel travel 100 mm
Min-Max distance height supports to bar C/L 100 - 376 mm
Max cylinder head and block lenght 810 mm
Max cylinder head and block width 300 mm
Variable spindle rotation speeds

250 - 1000 rpm
Spindle traverse rate 0 - 1000 mm/min
Feed motor power 0,50 HP
Dimensions (LxLxH) 1780x800x1385 mm
Weight 375 Kg














For further information

Download Brochure
